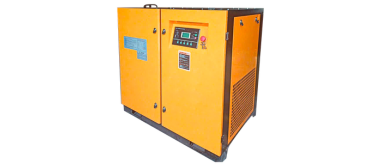

AC INVERTER AIR COMPRESSOR 200HP 200HP-IVTAIR-TDMP
AC INVERTER AIR COMPRESSOR 200HP 200HP-IVTAIR-TDMP
- FOB HochiMinh – Vietnam unit price: 43,912 USD
- Cargo code : 200HP-IVTAIR-TDMP
- Air compressor is used with Air drying machine and Air Storing tank
Air compressor description :
| No | Term | Information |
| 1 | Capacity | 200HP |
| 2 | Electric consumption | 160KW |
| 3 | Power | 3 pha -380V |
| 4 | Working pressure | 8-12bar |
| 5 | Air flow | 20.8m3/min |
| 6 | Machine weight | 3400 kgs |
| 7 | Machine size | 3150mm*1270mm*2075mm |
Air storing tank 4000L description :
| No | Term | Information |
| 1 | Storing capacity | 4000L |
| 2 | Tank material | Monolithic steel sheet A36 / SS400 / Q345 |
| 3 | Diameter | 1220mm |
| 4 | Height | 3950mm |
| 5 | Input/output air pipe | Inside thread 50A (Diameter 65mm) |
| 6 | Relief valve pipe | Inside thread 20A(Diameter 27mm) |
| 7 | Pressure gauge | 10 Bar/1.0Mpa |
| 8 | Working pressure | 10Bar/1.0Mpa |
| 9 | Performance working pressure | 15Bar/1.5Mpa |
| 10 | Tank inside paint | Coverred by anti-corrosion and rust paint |
| 11 | Tank outside paint | Coverred by Provincial paint |
| 12 | Paint color | Blue |
Extra information :
- Made in Taiwan
- Machine ingredient : AC inverter aircompressor 200 HP, Air drying machine, Air storing tank, Fitting and Tubing parts
- HS code : 84144000
- Technical guarantee : 1 year ( except machine oil, air filter, motor ( spoiled cause by changing phase)
