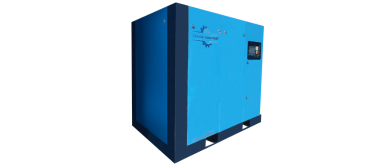

AC INVERTER AIR COMPRESSOR 50HP 50HP-IVTAIR-TDMP
AC INVERTER AIR COMPRESSOR 50HP 50HP-IVTAIR-TDMP
- FOB HochiMinh – Vietnam unit price: 17,426 USD
- Machine code : 50HP-IVTAIR-TDMP
- Air compressor is used with Air drying machine and Air Storing tank
Air compressor description :
| No | Term | Information |
| 1 | Capacity | 50HP |
| 2 | Electric consumption | 37.5 KW |
| 3 | Power | 3 pha -380V |
| 4 | Working pressure | 0.8 Mpa |
| 5 | Air flow | 13.2m3/min |
| 6 | Machine weight | 1780 kgs |
| 7 | Machine size | 1800mm*1250mm*1660mm |
Air storing tank 1500L description :
| No | Term | Information |
| 1 | Storing capacity | 1500L |
| 2 | Tank material | Monolithic steel sheet SS400 |
| 3 | Diameter | 1200mm |
| 4 | Height | 2800mm |
| 5 | Input/output air pipe | Inside thread 50A (Diameter 60mm) |
| 6 | Relief valve pipe | Inside thread 20A(Diameter 27mm) |
| 7 | Pressure gauge | 8 Bar/0.8Mpa |
| 8 | Working pressure | 8 Bar/0.8Mpa |
| 9 | Performance working pressure | 12Bar/1.2Mpa |
| 10 | Tank inside paint | Coverred by anti-corrosion and rust paint |
| 11 | Tank outside paint | Coverred by Provincial paint |
| 12 | Paint color | Blue |
Extra information :
- Made in Taiwan
- Machine ingredient : AC inverter aircompressor 50 HP, Air drying machine, Air storing tank, Fitting and Tubing parts
- HS code : 84144000
- Technical guarantee : 1 year ( except machine oil, air filter, motor ( spoiled cause by changing phase)
