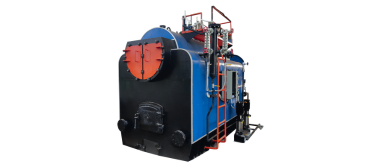

BOILER 1000KGS 1000BOIHP
BOILER 1000KGS 1000BOIHP
- FOB Hochiminh, Vietnam Unit Price : 46,700 USD
- Cargo code: 1000BOIHP
- Size (L*W*H) 3.5m*1.8m*2.3m
- Electric consumption: 5kw/ 3 phases/ 380V
| No | Ingredient | Qnt | Content |
| 1 | Stain steel water filter DN50 | 2 units | -Cast iron main body. -Stain steel 304, 316 filter. – Pressure 10,16kgf/cm2. – Impurities filter -Made in Taiwan |
| 2 | Vertical Water Pump | 2 units | – Body pump coverred by stain steel. – Pump body made by alloy cast iron – Pump chamber made by stainless alloy AISI 304 – Made in China |
| 3 | Steam supplying Valve DN50-PN16 | 1 unit | -Cast iron main body and connection parts that made they are fixed to each other. -Made in Poland |
| 4 | Discharge Valve DN25 | 1 unit | -Cast iron main body and connection parts that made they are fixed to each other. -Made in Italy |
| 5 | Pressure Clock 0-10kg/cm2 | 1 unit | -Measure pressure of steam – Made in Korea |
| 6 | Electric cabinet | 1 unit | LG branding, controlling all parts of Boiler |
Cargo decription :
- Boiler dust cleaning tank that make smoke reach pure before enterring environment
- Boiler bottle stored steam before supplying to equipments
- This product does not incldue Water tank for Supplying water to Boiler
- Fuel for Boiler : Coal, firewood, cashew shell
- Boiler body made by Steel SS400, 14mm thickness
- Chimney made by Steel A515
- Fundamental frame made by Steel I120
- HS code : 84021919
Technical guarantee : 1 year
