Made by Steel Pipe, diameter 34mm, 4.5m length, 2.0mm thickness Thin steel sheet of 60mm, 0.5mm thickness scrolled around steel pipe Made in Vietnam
3
Input temperature pipe
1
Made by steel pipe, diameter 34mm, 2mm thickness
4
Output water pipe
1
Made by steel pipe, diameter 34mm, 2mm thickness combine Stain steel Valve 34, automatic drainage. Valve made in Korea
5
Electric cabinet and Alarm
1
Electric control center, made in Vietnam
Cargo decription :

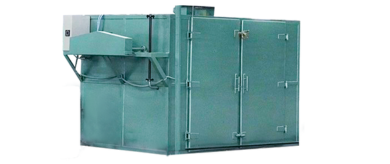

Borma room have ingredient Steel frame and Panel wall
Steel frame made by box steel 50mm*100mm, 1.8mm thickness
Panel wall made by insulation panel, 50 mm thickness, specifict weight 12kgs/m3
Inside borma, that we have 12 trolleys, each trolley content 40 trays, each tray content 6-7 kgs fresh kernel, capacity 2400 kgs -2800 kgs each heating time
Time of heating : 22 to 24 hours ( belong to each fresh kernel)
Automatic electric power off when temperature reach maximum limit
Price including 12 trolleys inside borma ( 40 trays/ trolley)
