Made by box steel 100mm*100mm, 3mm thickness, 4.0m length
2
Around wall Size (L*H) 2.0m*2.5m.
4
-Main frame made by box steel 40mm*80mm, 1.8mm thickness -Supported frame made by box steel 40mm*40mm, 1.4mm thickness distance each frame 600mm -Wall made by stain steel 1.2mm thickness
3
Seperation wall Size (L*W) 2.3m*2.0m
4
-Main frame made by box steel 40mm*80mm, 1.8mm thickness -Supported frame made by box steel 40mm*40mm, 1.4mm thickness -Wall made by stain steel 1.2mm thickness
4
Funnel
1
Funnel made by stainsteel sheet 2.5mm thickness, ledge supported, drilling oval hole, connecting by screw
Cargo description :
Capacity : 10 tons

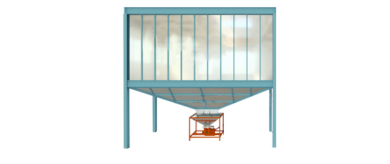

Tank designed as module, connect each other by screw, easy for transportation and installation
