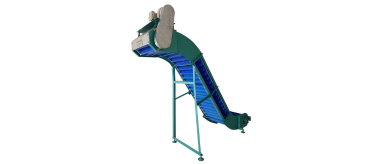

LAGRE BUCKET CONVEYOR BUC1HN

MAXIMUM LENGTH 15m

• FOB HoChiMinh, Vietnam Unit Price : 188 USD/m
• Cargo code : BUC1HN
• Electric consumption : 1kw/3 phases /380V
• Size: (**W*H) 520mm* 310mm ( Length depend on each different using condition)

Where does it use ?

Bucket conveyor that brings Boiled raw cashew nut from Cooker to Trolley (above material tank for cutting machine)

Bucket conveyor that brings Boiled raw cashew nut from Cooker to funnel of Cutting machine

Bucket conveyor that brings Fresh kernel from Cutting machine to Fresh kernel tank

Bucket conveyor that brings Fresh kernel from Fresh kernel tank to Fresh kernel Color sorting machine

Bucket conveyor that brings Fresh kernel from Fresh kernel Color sorting machine to Fresh kernel  (for borma)  tank

Bucket conveyor that brings Final kernel from Peeling machine to Tank

Cargo description :

• Gearbox motor 1 HP, frame made by V4 Steel, 2mm thickness, gear conveyor made by cast Iron
• Bucket connection pivot made by stain steel with diameter 8mm
• HS Code : 40101900
• Technical guarantee : 6 months ( except motor spoiled cause by changing phases,  conveyor spoiled by heavy objects)
