Made by steel shape I198, 10mm thickness. On the top of Pillar weldding with square sheet edge 300mm, thickness 8mm which is hole drilled to connect with tank
2
Surround wall
26
-Main frame made by box steel 100mm*100mm, 3mm thickness -Supported frame made by box steel 40mm*40mm, 1.4mm thickness, distance each frame 600mm -Frame is coverred by steel sheet 2mm thickness, connecting frame by screw Size (W*H) 1.9m*2.0m
3
Seperation wall
12
-Main frame made by box steel 100mm*100mm, 3mm thickness -Supported frame made by box steel 40mm*40mm, 1.4mm thickness, distance each frame 600mm, connecting frame by screw Size (W*H) 2.33m*2.0m
4
Funnel
6
Funnel made by steel sheet 3mm thickness, ledge supported, drilling oval hole, connecting by screw
Cargo description :
Capacity : 50 tons

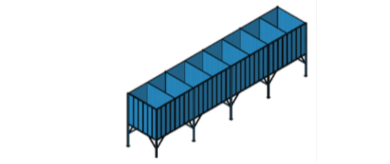

Tank designed as module, connect each other by screw, easy for transportation and installation
