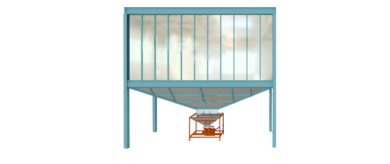

SPREADING FRESH KERNEL  BORMA TANK TANK8TP

2 SECTIONS 10 TONS

• FOB HoChiMinh, Vietnam Unit Price : 8,364 USD
• Cargo code: TANK8TP
• Size: (L*W*H)  4.0m*2.5m*4.0m
• Electric consumption: 0.4kw/ 3 phases/ 380V

No	Ingredients	Qnt	Information
1	Tank Pillar	4	Made by box steel 100mm*100mm, 3mm thickness, 4.0m length
2	Surround wall  Size (L*H)  2.0m*2.0m	4	-Main frame made by  box steel 40mm*80mm, 1.8mm thickness -Supported frame made by box steel 40mm*40mm, 1.4mm thickness distance each frame  600mm -Wall made by stain steel 1.2mm thickness
3	Seperation wall Size (L*W) 2.3m*2.0m	3	-Main frame made by  box steel 40mm*80mm, 1.8mm thickness -Supported frame made by box steel 40mm*40mm, 1.4mm thickness -Wall made by stain steel 1.2mm thickness
4	Funnel	1	Funnel made by stainsteel sheet 2.5mm thickness, ledge supported, drilling oval hole, connecting by screw
5	Kernel transporting conveyor Size (L*W*H) 4000mm*600mm *900mm	1	Frame made by sheet stain steel  mold box supported, scroling pivot Φ114 Conveyor made by PVC plastic
6	Vibration motor	1	Spreading fresh kernel to borma troley’s tray
7	Electric cabinet	1	Electric cabinet made in Vietnam, inside equipment made by LG, connecting  motor conveyor and motor vibration tray, controling function

Cargo description :

• Capacity : 5 tons
• Tank designed as module, connect each other by screw, easy for transportation and installation
• HS code : 73090099

Technical guarantee : 1 year
